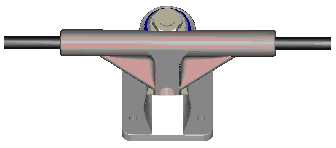

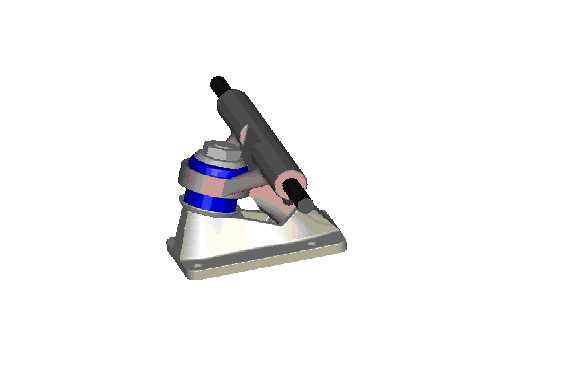

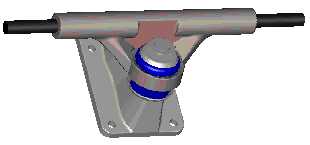

| These are some pictures of the truck modeled in I-DEAS. For full details, download the CAD/CAM report from the main page. |
|
|

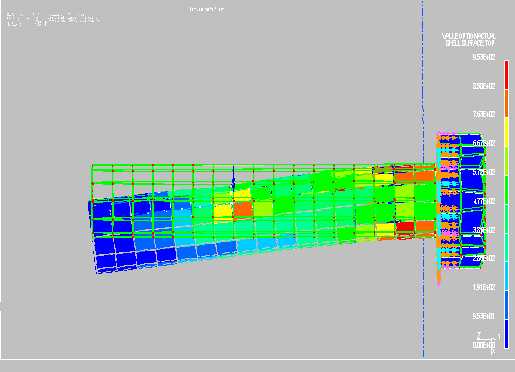

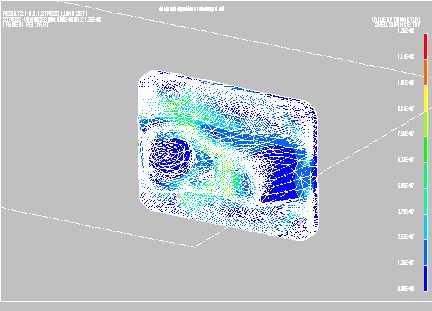

| Finite Element Analysis was done on several components. The two above are the baseplate (left) and the kingpin. The forces applied and boundary conditions are similar to what would occur during regular use. |
